Accessories

accessories – current sensor, sense resistors and shunts

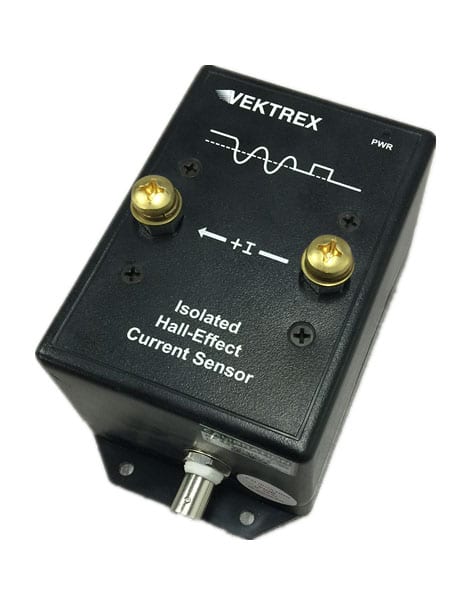

	VCS Series Isolated Hall Effect Current Sensors provide high-bandwidth current sensing with amplified output. The 50Ω voltage output may be directly connected to an oscilloscope or data acquisition system

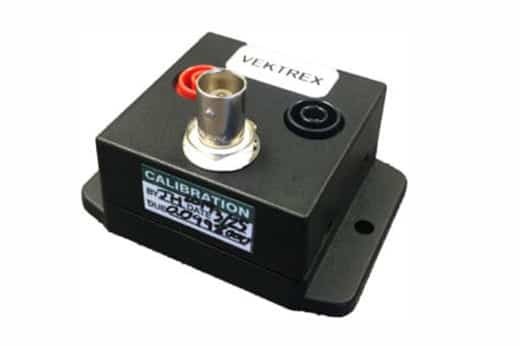

	Current Sense Resistors accurately convert a current signal to a voltage signal that may be measured with a digitizer or digitizing multimeter.

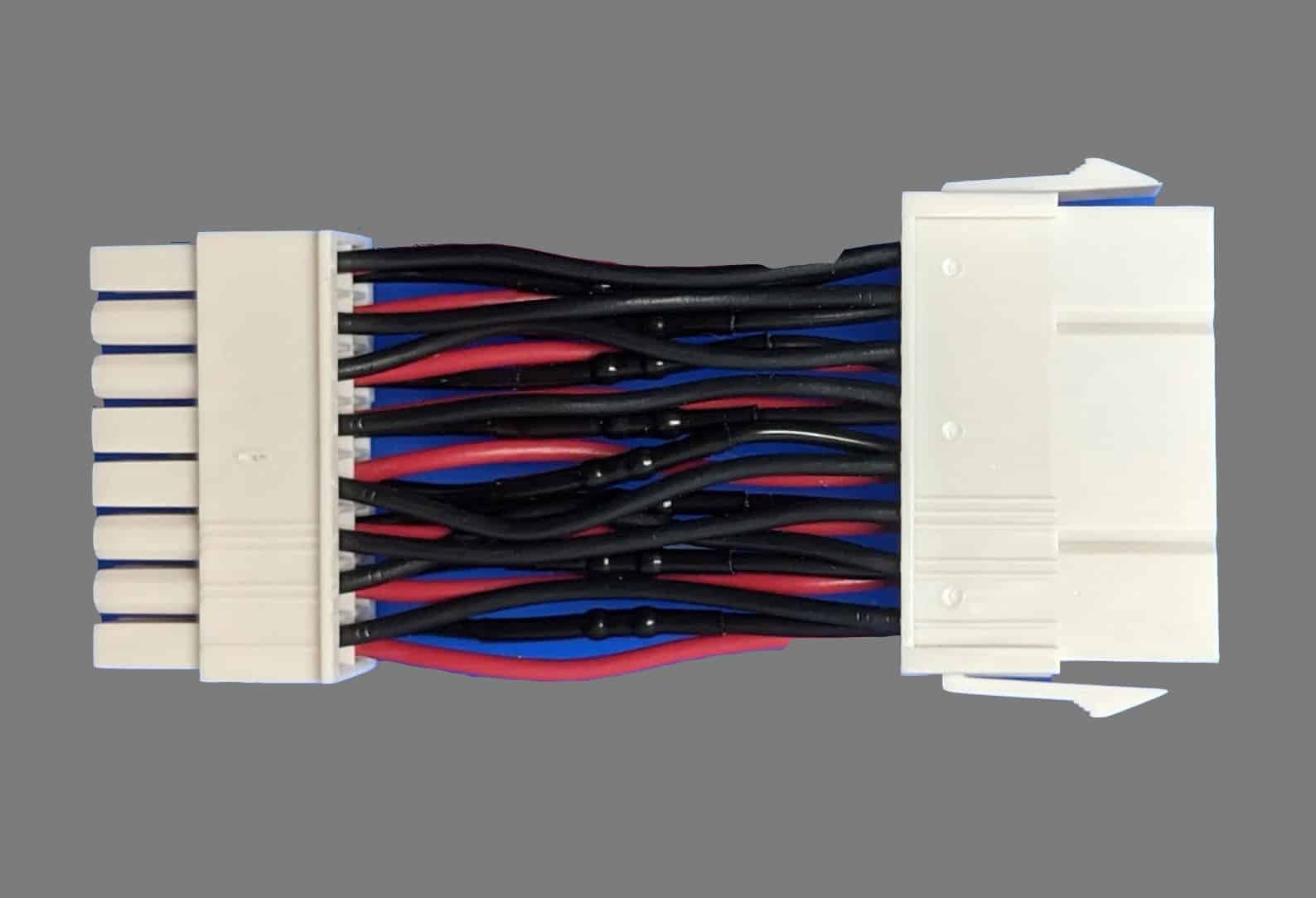

	Current Shunt Cable (short) for SMU High Current Models). It is normal for a device under test to have a voltage potential across it during the off time. Even though a voltage is present, the current through the device is very small or zero during this time. A current shunt cable may be used to reduce this voltage eliminating residual light.

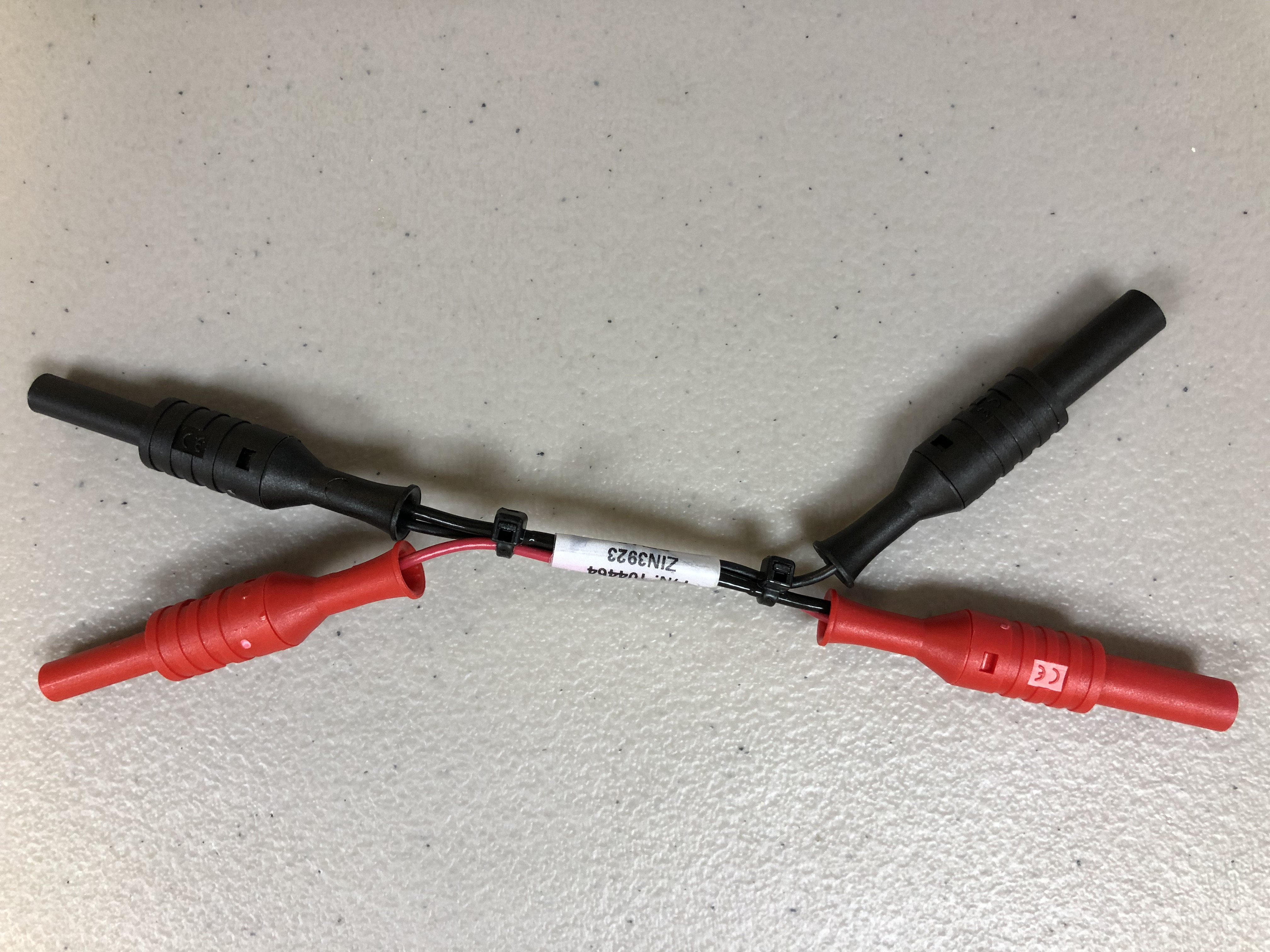

	Current Shunt Cable for SMU Models. A current shunt cable shunts excess capacitance for a single source channel eliminating excess light output during pulse off. P/N 104464.

accessories – thermal measurement

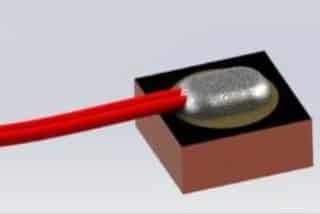

	Thermocouple isolator pod provides a convenient way to attach a bare, uninsulated thermocouple to an electrically active pointThe isolator pod provide electrical isolation while maintaining thermal conductivity. P/N 104263

accessories – multichannel current source drive / force cables

	Multichannel Current Source DRIVE CABLES Drive cables are available for all Vektrex products; single and multichannel models. Vektrex current sources and pulsed sources guarantee current accuracy to the ends of long cables.

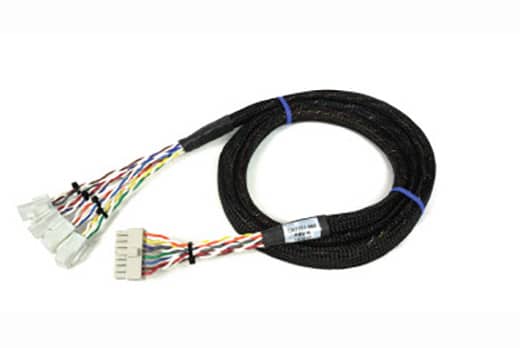

	Shown is a 3m extension cable; extending current from the Spikesafe current source to a pigtail cables in a test system. PVC, sleeved; 8 individually controllable source channels Standard lengths 3m, 6m, 9m and 12m Contact Vektrex for more information about cables used in our systems.
	Teflon cables are available for use in chambers and heated environments. Teflon; unsleeved; 9 individually controllable source channels. Terminated and unterminated. Contact Vektrex for more information about teflon cables.

accessories – trigger cables

104965-060	SMU trigger cable for flexibility; offers input, output, software and negative trigger capabilities. SKU 104965-060
101443-060	SMU Output trigger cable SKU 101443-060
104707-060	SMU Input/Output trigger cable SKU 100172-060
	Keithley 7510 trigger cable. SKU
100172-060	CAS 140 trigger cable SKU SKU 100172-060
106076-060	GigaHertz-Optik trigger cable SKU 106076-060

Accessories – source measure force sense cables

	SMU Cables
104460	SMU Force cable for models to 10A; no switch; all pulse widths. Banana Jack Termination. SKU 104460-072
104460	SMU Sense cable for models to 10A; no switch; all pulse widths. Banana Jack Termination. SKU 104460-072
104461	SMU Force cable for models to 10A; no switch; short pulse (<10us) SKU 104461-072
	SMU High Current Force cable to 10A; no switch; all pulse widths
	SMU High Current Sense cable to 10A; no switch; all pulse widths
